Data List (DL)
Generate a list of values with optional units and titles, displayed directly in the InForm web interface.

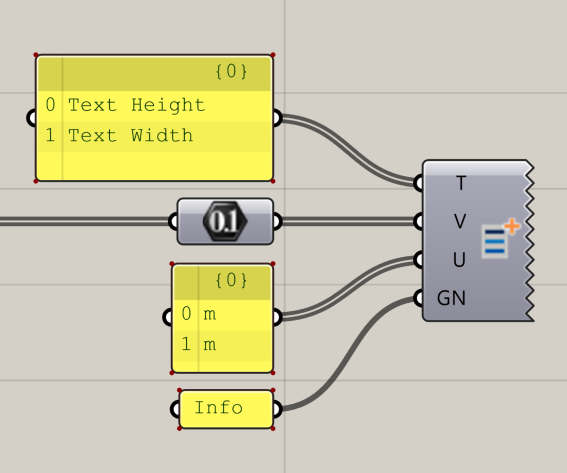

📸 Component Screenshot
📂 Component Location
Tab: 3. Charts
📝 Description
The Data List (DL) component creates a list of labeled values and displays them in the InForm sidebar. Each value can include a title and an optional unit. Items can also be grouped using the Group Name parameter.
📁 Example File
🔌 Inputs
| Abbrev. | Full Name | Type | Description |
|---|---|---|---|
| T | Title | Text | List of titles for each value. Keep them short and clear. |
| V | Values | Number or Text | List of values or strings to display. |
| U | Unit | Text | Optional list of units for each value. |
| GN | Group Name | Text | Group identifier used to organize multiple data lists within InForm. |
🔄 Outputs
This component has no outputs.
Once all inputs are provided, the data list is automatically rendered in the InForm platform.
